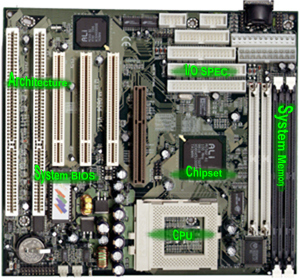

MAL7542
    ALi Aladdin-V AGP set

        Arrow-blue.gif (140 bytes) Optional Audio On Board       Arrow-blue.gif (140 bytes) Modem Ring On
        Arrow-blue.gif (140 bytes) Soft-Off-Control                       Arrow-blue.gif (140 bytes) Optional Keyboard Power-On
@
Architecture
3 * PCI Local Bus and 2 * ISA bus slots
1 * 32 bit AGP
( Accelerated Graphic
Port ) slot
All PCI Local Bus slots support Bus mastering
PCI Ver2.1 Compliant
AGP Ver1.0 Compliant
@
I/O SPEC
2*16550 UART compatible enhanced serial ports
1* High performance EPP/ECP parallel port functions
1 * Floppy disk drive interface
2 * Universal Serial Bus (U.S.B.)
1 * Ir Interface
Integrated IDE Controller with Ultra DMA /33 support
Supports LS-120 Floppy Disk Drive
Supports PS/2™ mouse connector
@
CPU
Support all Socket 7 processors; including 64 bit Pentium / Pentium with MMX, AMD K6 86 (K6); Cyrix / IBM 6*68 / 6*68MMX and IDT C6 CPUs
Supports 66/75/83/100MHz bus speeds therefore allowing for speeds > 300MHz
Others
AT Form Factor
Supports Gigh Efficiency Switching Power supply
Voltage range 2.0V to 3.5V which supports all kinds of CPUs
Supports Auto stop CPU fan in suspend mode
Supports monitoring of : temperature, power supply voltage and fan speed
Resumes by Modem Ring-In
Wake on Lan
System Memory
2*DIMM Slot supporting SDRAM or   EDO/FPM DRAM
2 * SIMM Slots supporting EDO/FPM DRAM
System BIOS
Supports Green function, Plug and Play Flash ROM
PC97 Compatible Power Management
Chipset
Ali Aladdin-V
Specifications subject to change without prior notice. E&OE.
All other trademarks mentioned herein are the properties of
their respective companies.
