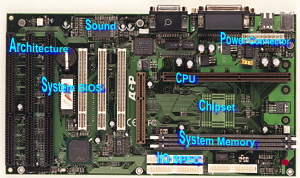

MEX8440

AGP, PCI, ISA Bus Pentium II Mainboard


Equipped with Intel's Celeron™ microprocessor and 82440EX chipset, this mainboard
provides appropriate functions to meet the core needs and affordability requirement commmon to entry-level compuuting users withoout sacrificing the high quality, compatibility and reliability provided by Intel's Pentium II platform.
System BIOS
Supports Green function, Plug and Play Flash ROM
BIOS supports IDE CD-ROM and SCSI HDD boot-up
Sound (optional)
3D Surround Sound
Full duplex playback and recording
16bit stereo 44KHz sampling rate voice playback / recording
Auto hardware switching mode between WSS and SB
GAME Port
Standard IBM PC joystick / game port
CPU
Intel Pentium II Processor; Celeron™, SLOT1: Operating at 233~333MHz
Chipset
Intel Pentium II Processor, SLOT 1:
Operating at 233~450MHz
Architecture
3 *32 bit PCI slots and 3*16 bit ISA Bus slots
All 3 PCI slots support Bus Mastering mode
PCI Rev.2.1 Compliant
PCI-to ISA I/O Bridge with support for 33MHz PCI operations
1*32-bit AGP (Accelerated Graphic Port) Slot
MEX8440
Power Connector
3V, 5V and 12V ATX Power Connector
System Memory
2*168 pin DIMM (3.3V EDO DRAM or SDRAM)
Up to 256MB System Memory
Others
System  Management Bus (SM Bus) with support foor DIMM via Serial Presence Detect (SPD) mechanism
Supports Hardware System Monitoring: CPU/ System FAN status monitoring and alarm, CPU voltage, CPU temperature monitoring
ATX Form Factor 17cm * 30.5cm
I/O SPEC
2 PCI IDE interfaces on board support ATA spec. up to mode 4, bus master mode and Ultra DMA 33MB/sec
2*16550 UART compatible enhanced serial ports
1* High performance EPP/ECP parallel port functions
1 * Floppy disk drive interface
2 * Universal Serial Bus (U.S.B.)
Ir Jumper (optional)
Supports LS-120 Floppy Disk Drive
Power Management
Compliant with EPA,
APM 1.2 and ACPI
Soft off function that allows you to swith off the PC without pressing the power button
Resume by Modem Ring-in
Resume by Alarm
Resume by Keyboard / Password (optional)
Specifications subject to change without prior notice. E&OE.
All other trademarks mentioned herein are the properties of
their respective companies.
